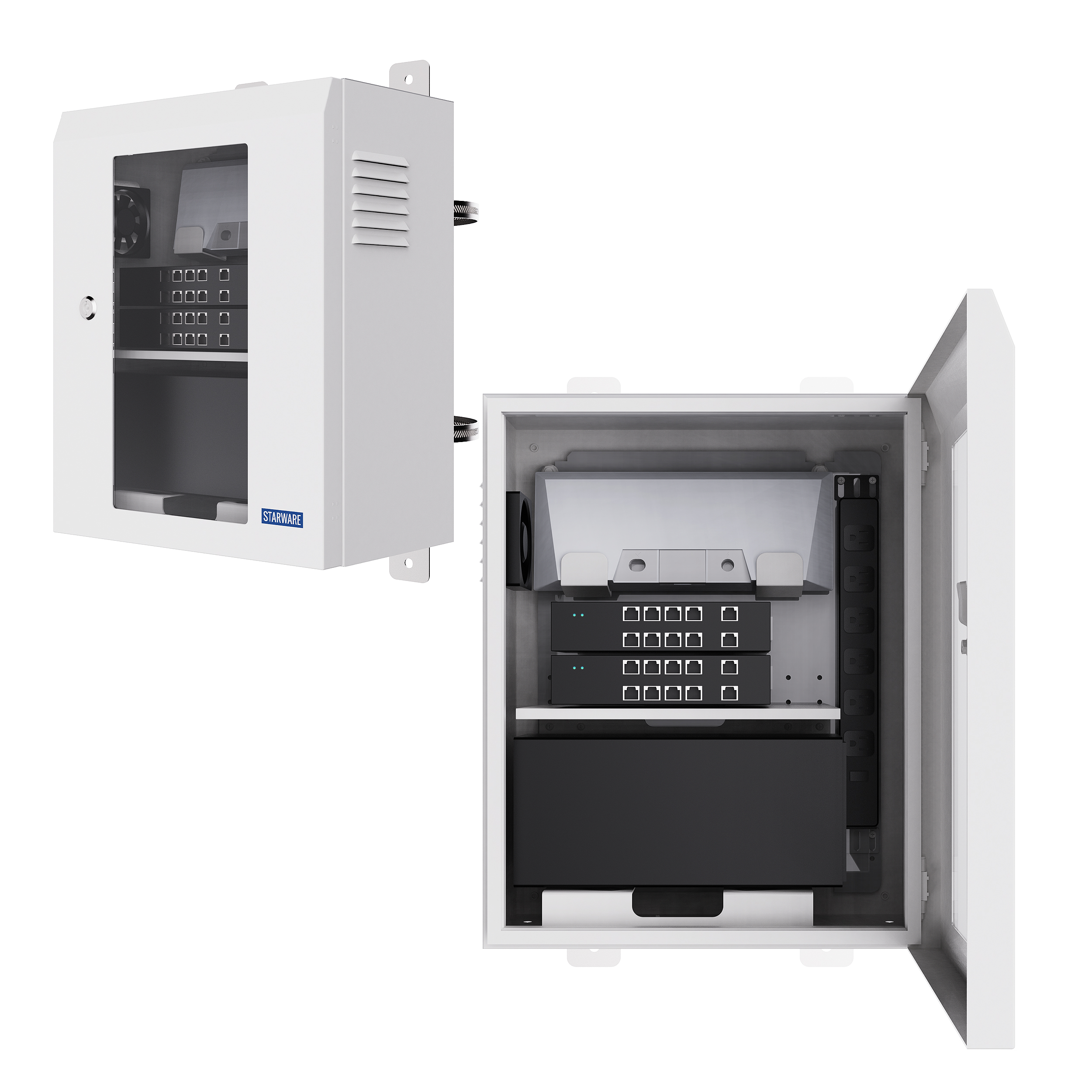

OUTDOOR ELECTRICAL BOX
Model: M119
STARWARE Customizable Jobsite Network Box for Starlink
Starlink Outdoor Electrical Box with Backup Power — integrating UPS, PoE switch, PDU and enclosure into one integrated outdoor power & storage solution for Starlink deployments and beyond.
✓ 1000VA / 600W UPS Backup
✓ 8+2+1 Gigabit PoE
✓ Wall & Pole Mount
✓ IP55 Outdoor Protection
1000VA/600W
UPS Backup Power
8+2+1
PoE Port Config
IP55
Outdoor Rating
2-in-1
Wall / Pole Mount
PRODUCT OVERVIEW
Four Core Components
Integrated design combining enclosure, cooling, UPS and PDU in one unit — two configurations, two installation methods.
Cold-Rolled Steel Enclosure
500 × 400 × 250mm | IP55 | Transparent explosion-proof door window
Cooling Fan
92 × 92 × 25mm | 24V 0.12A | Noise <35dBA @1M
UPS Uninterruptible Power Supply
1000VA / 600W | 6ms transfer | Lead-acid VRLA 12V 9AH
6-Outlet PDU Power Strip
250V / 10A | MAX 2500W | Flame-retardant PC enclosure
Two Configurations: A · Starlink Dedicated Cabinet (with router bracket + dual PoE switches) | B · General-Purpose Electrical Cabinet Two Installation Methods: Wall-Mount / Pole-Mount
Core Features
Why Choose the M119 Network Box Kit?
From backup power to network expansion, from outdoor protection to signal transparency — M119 delivers a complete, industrial-grade solution for your Starlink deployment.
Stable Power + Network Expansion
Built-in 1000VA / 600W UPS provides seamless battery backup during outages. The 8+2+1 Gigabit PoE switch (30W per port, 120W total, 20Gbps backplane) supports PoE powering, fiber uplink and multi-device connections.
Power + Network
All-in-One Deployment Design
Combines UPS backup power, PoE switch, power management and device protection in a single unit. Ready to use out of the box — no more sourcing parts or complex assembly.
All-in-One Design
Dual Mounting Options
Supports both wall-mount and pole-mount installation for walls, light poles, towers and more. Full mounting kit included — deploy in as little as 5 minutes.
Wall + Pole Mount
Outdoor-Grade Protection & Cooling
Cold-rolled steel with powder coating, IP55-rated enclosure with transparent explosion-proof door window. Active 92mm cooling fan (2800RPM, <35dBA) with weatherproof vents for heat, dust and humidity outdoors.
Outdoor Ready
Signal-Friendly Structure
The front door features a large, shatterproof transparent PC panel that won't block Starlink satellite signals while keeping internal equipment safe. Uninterrupted signal, uncompromised protection.
Signal Transparent
Multi-Device Hub
11 network ports (8× PoE + 2× uplink + 1× SFP fiber) plus UPS power management connect Starlink router, PoE cameras, wireless APs, IoT gateways and more in one place.
Multi-Device Hub
Technical Specifications
Detailed Technical Specifications
Every specification is engineered for outdoor deployment with industrial-grade reliability.
UPS Uninterruptible Power Supply
Rated Capacity
1000VA / 600W
Input Voltage
110/120VAC or 220/230/240VAC (wide range 86–285VAC)
Transfer Time
6ms, seamless transfer on mains failure
Battery
Lead-acid VRLA battery 12V 9AH
Output Waveform
Simulated sine wave
Communication & Display
RS232 / USB / RJ11 / RJ45; multifunction LCD panel
Electrical Protection
Lightning / surge / short-circuit / overvoltage & undervoltage protection
Operating Noise
Full load <40dBA @1M
Enclosure Structure & Cooling
Enclosure Material
Powder-coated cold-rolled steel, corrosion-resistant
Overall Dimensions
500 × 400 × 250mm
Protection Rating
IP55, transparent explosion-proof door window
Cooling Fan
92 × 92 × 25mm, 24V 0.12A
Fan Noise
2800RPM, <35dBA @1M
Fan Operating Range
-10 ~ 60°C
PoE Switches (Starlink Dedicated Cabinet)
PoE Ports
8 × Gigabit PoE ports
Power Capacity
30W per port, 120W total system power
Uplink Ports
2 × Gigabit Ethernet + 1 × SFP fiber port
Backplane Bandwidth
20Gbps
Port Protection
Lightning and surge protection
Environmental
Operating Temperature
-25 ~ 55°C
Humidity Range
20% ~ 95% (non-condensing)
6-Outlet PDU Power Strip
Specification
250V / 10A
Enclosure Protection
Flame-retardant PC; overload & short-circuit protection
Max. Power
MAX 2500W
Note: The General-Purpose Electrical Cabinet does not include PoE switches or the dedicated Starlink compartment. Specifications are subject to the official product specification sheet.
Internal Layout
Thoughtfully Designed Interior
From UPS power to the PoE switch, every element is laid out for stable operation.
1
1000VA / 600W UPS Backup Power
Industrial-grade UPS with 6ms seamless transfer, lead-acid VRLA 12V 9AH battery. RS232/USB/RJ45 communication interfaces and LCD panel enable remote monitoring. Lightning, surge, short-circuit and overvoltage protection built in.
2
8+2+1 Gigabit PoE Switch
8 Gigabit PoE ports (30W per port, 120W total), 2 Gigabit uplink ports, 1 SFP fiber port. 20Gbps backplane bandwidth. Lightning and surge protection on all ports. Only included in the Starlink Dedicated Cabinet (Configuration A).
3
6-Outlet Flame-Retardant PDU
250V / 10A, MAX 2500W. Flame-retardant PC enclosure with overload and short-circuit protection. Available in US / EU / UK socket standards. LCD panel displays real-time input/output voltage, load and battery status.
4
Smart Cooling System
92 × 92 × 25mm cooling fan, 24V 0.12A, 2800RPM, noise <35dBA @1M. Operating range -10~60°C. Weatherproof vents plus temperature-controlled fans keep internal devices stable even in extreme outdoor heat.
PRODUCT CONFIGURATIONS
Two Configurations, Selected by Business Line
Choose the right configuration based on your deployment scenario and business needs.
A · Starlink Dedicated Cabinet
Starlink Integration
Includes dedicated Starlink router bracket and two PoE switches
Configuration: Enclosure + fan + UPS + 6-outlet PDU + dedicated Starlink router bracket + dual PoE switches
Business Line: Starlink site deployment & integration services
Applications: Construction sites, mining, oil & gas, maritime, emergency communications; enterprise branch backup network nodes
B · General-Purpose Electrical Cabinet
Universal Power
Full cabinet space for general-purpose equipment without Starlink compartment
Configuration: Enclosure + fan + UPS + 6-outlet PDU
Business Line: Surveillance & communications infrastructure deployment
Applications: Power for outdoor APs / surveillance / edge gateways; site networking and temporary power for construction and events
Comparison
A · Starlink Dedicated
B · General-Purpose
Product Configuration
Enclosure + fan + UPS + 6-outlet PDU + Starlink router bracket + dual PoE switches
Enclosure + fan + UPS + 6-outlet PDU
Applicable Business Line
Starlink site deployment & integration services
Surveillance & communications infrastructure deployment
Typical Applications
Construction sites, mining, oil & gas, maritime, emergency communications; enterprise branch backup network
Power for outdoor APs / surveillance / edge gateways; site networking and temporary power
USE CASES
Four Deployment Scenarios
Two product configurations covering enterprise Starlink deployment, backup networks, UPS power support and site networking.
USE CASE 1 · CONFIG A
Enterprise Starlink Deployment
For construction sites, mining areas, oil & gas, maritime and emergency scenarios where fiber coverage is difficult, the cabinet integrates the Starlink router, two PoE switches and UPS in one enclosure, providing centralized power and protection for the complete Starlink system.
Integrated Storage
Router, dual switches and UPS securely mounted inside the IP55 enclosure
6ms Seamless Transfer
UPS takes over instantly when mains power fails, keeping the network powered
All-Weather Outdoor Operation
Wide-voltage input + surge and lightning protection for power conditions in remote areas
USE CASE 2 EXTENDED · CONFIG A
Enterprise Backup Network Support
Starlink serves as an intelligent backup link (Failover) for enterprise branches; when mains power fails, the built-in UPS keeps the link continuously available.
Automatic Failover
Traffic switches to Starlink when the primary link fails, with seamless business continuity
Remote Management
RS232 / USB / RJ45 communication interfaces enable integration into centralized NOC monitoring
Wall-Mount Deployment
Ready to install on exterior walls without occupying indoor rack space
USE CASE 3 · CONFIG B
UPS Power Support
Provides 1000VA / 600W backup power and IP55 protection for outdoor APs, surveillance cameras, edge gateways and other ICT equipment. Without a dedicated Starlink compartment, the full cabinet space is available for general-purpose equipment.
1000VA / 600W Backup Power
Continues supplying power after mains failure, providing time for maintenance response
Inspection-Friendly
Transparent explosion-proof window + LCD panel allow status checks without opening the door
IP55 Outdoor Protection
Dust-resistant and protected against water spray for outdoor conditions
USE CASE 4 EXTENDED · CONFIG B
Site Networking & Temporary Power
For building MEP construction and temporary event network support: wide-voltage input accommodates power fluctuations at construction sites, while the 6-outlet PDU supports multiple devices simultaneously, providing a stable outdoor power node for construction and temporary deployments.
Wide-Voltage Input 86–285VAC
Stable operation under grid fluctuations and temporary power conditions
6-Outlet PDU / MAX 2500W
Powers multiple devices such as testers, network equipment and tools simultaneously
Active Cooling
92mm fan dissipates heat for long-term full-load operation of equipment inside the cabinet
Why Choose Us
M119 vs. Traditional Deployments
Aspect
Traditional Setup
M119 Advantage
Integration
Requires buying UPS, switch, enclosure and cables separately
✓ All-in-one, ready out of the box
Outdoor Protection
Ordinary enclosures with no professional outdoor rating
✓ IP55-rated, cold-rolled steel + powder coating
Outage Backup
No backup power — power loss means connection loss
✓ 1000VA / 600W UPS keeps you online during outages
Network Expansion
Limited ports, extra equipment required
✓ 8+2+1 ports, 120W PoE, 20Gbps backplane with fiber expansion
Signal Transparency
Metal enclosures can block Starlink signals
✓ Transparent explosion-proof PC panel, zero signal blockage
Installation Flexibility
Single mounting option, limited scenarios
✓ Wall + pole mount for any scenario, both configurations
FAQ
Questions You May Have
Common questions about the M119 Outdoor Electrical Box.
What are the two configurations available?
Configuration A (Starlink Dedicated Cabinet) includes the enclosure, fan, UPS, 6-outlet PDU, dedicated Starlink router bracket and dual PoE switches. Configuration B (General-Purpose Electrical Cabinet) includes the enclosure, fan, UPS and 6-outlet PDU without the Starlink compartment or PoE switches.
What is the UPS backup capacity and transfer time?
The built-in UPS provides 1000VA / 600W with a 6ms seamless transfer time when mains power fails. It uses a lead-acid VRLA 12V 9AH battery and supports wide-voltage input (86–285VAC) for unstable power conditions in remote areas.
What communication interfaces are available?
The UPS features RS232, USB, RJ11 and RJ45 communication interfaces, plus a multifunction LCD panel displaying real-time input/output voltage, load and battery status. This enables integration into centralized NOC monitoring and remote management.
What are the PoE switch specifications?
The Starlink Dedicated Cabinet (Config A) includes two built-in PoE switches with 8 Gigabit PoE ports (30W per port, 120W total), 2 Gigabit uplink ports, 1 SFP fiber port, 20Gbps backplane bandwidth, and lightning/surge protection on all ports.
What environmental conditions can the M119 withstand?
The enclosure is IP55-rated (dust-resistant, water-spray resistant) with an operating temperature of -25 to 55°C and humidity range of 20% to 95% (non-condensing). The 92mm cooling fan operates from -10 to 60°C at 2800RPM with noise below 35dBA.
Can I customize the socket standards and branding?
Yes. US, EU and UK socket standards are available. OEM/ODM customization is available for branding, colors and selected internal configurations. Contact our sales team for bulk orders and custom requirements.
Ready to Upgrade Your Starlink Deployment?
M119 Starlink Outdoor Electrical Box — power, network and protection in one professional solution. Two configurations, two installation methods, one integrated outdoor power & storage solution.
